Conditions

Create a condition to sequentially check desired cases

When the node is executed, it will check each condition added. If it matches the condition, the process will execute the node connected to the condition’s output. If the condition is false, the process will execute the node connected to the Else output.

Open the condition builder to learn how to build a condition.

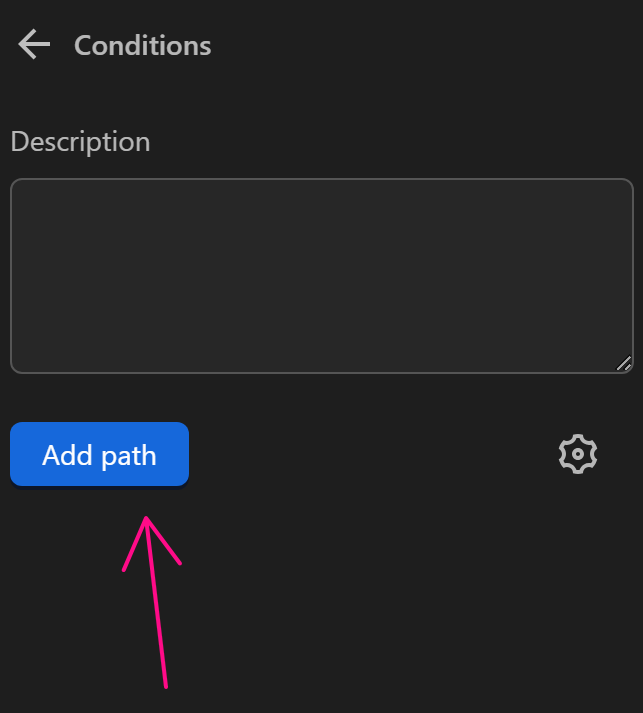

Add path

Add conditions to use in the node

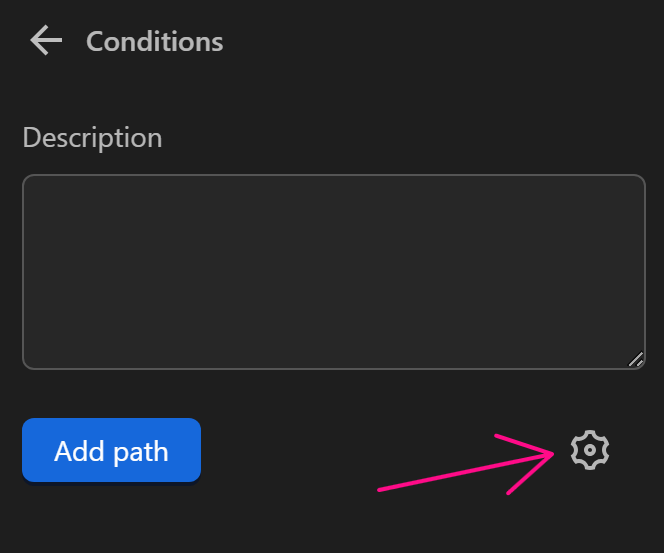

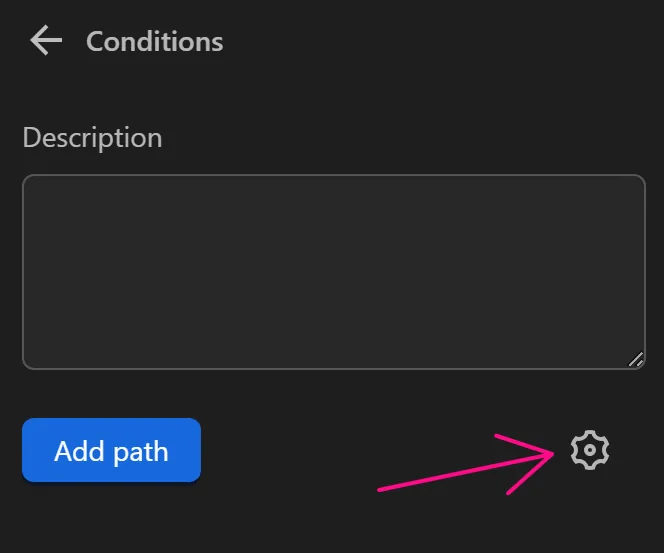

Settings

Select settings to apply additional requirements to the node

Check Conditions Simultaneously

Check all conditions at the same time

Retry if All Conditions Are Not Met

When this option is enabled, I want the condition node to retry a number of times when no condition is met

Time Limit (seconds)

The time for each execution of the Conditions node

Edit Conditions

Access the condition table to edit conditions

Delete Conditions

Delete the desired condition

Practical Example

Case with One Correct Conditions Branch

Example

Here, I will use the Conditions node in the Google account login process

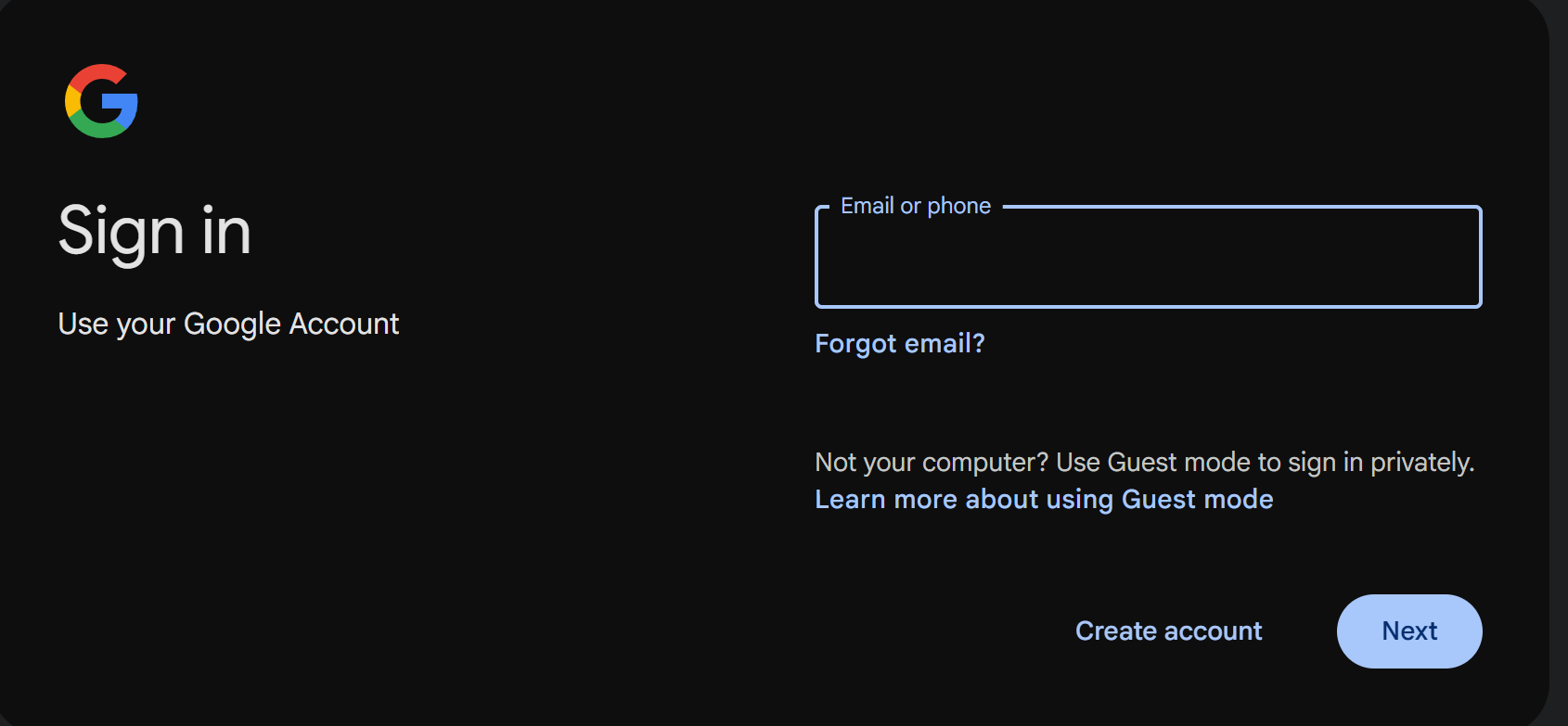

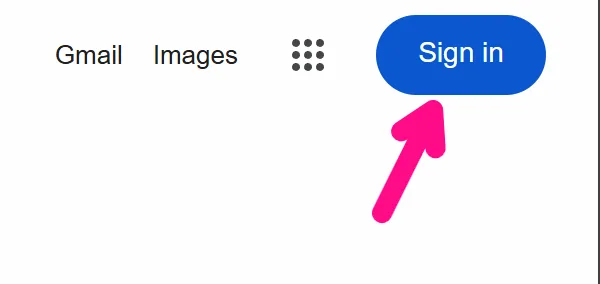

In this process, after clicking the Sign in button, the Google account input page will appear. Normally, the page loads quite quickly, but in some cases with a slow network, I will add the Conditions node after the Click element node to check if the account input page has appeared

I will configure the Conditions node as follows

First, add a condition and configure it in the condition table

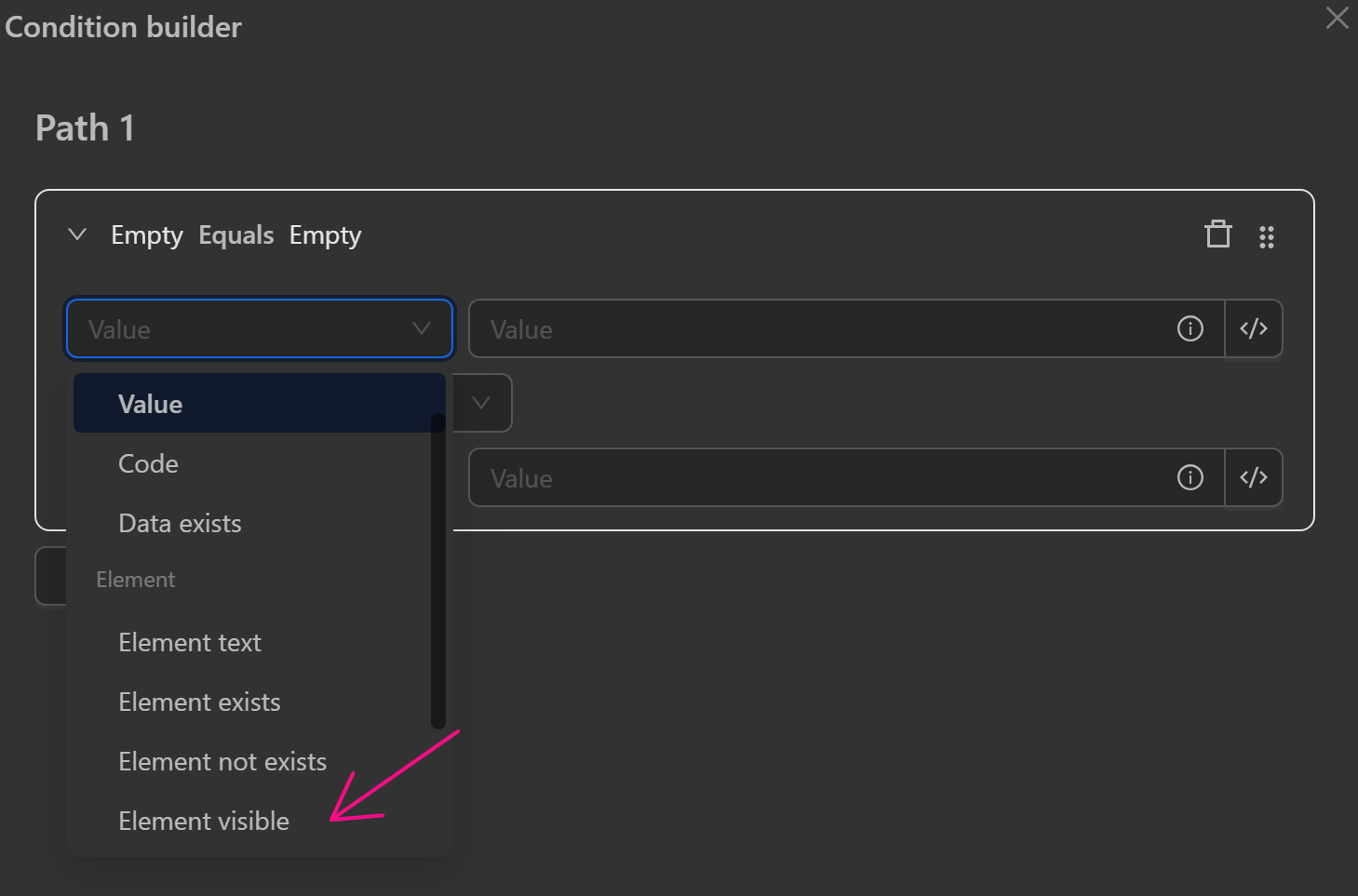

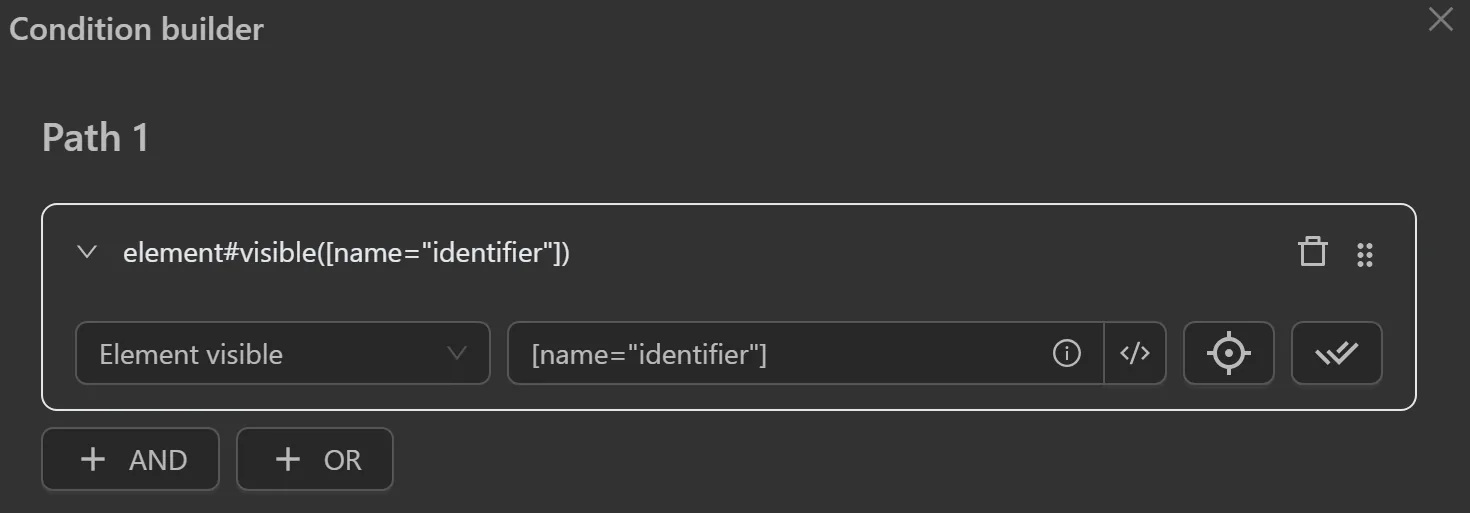

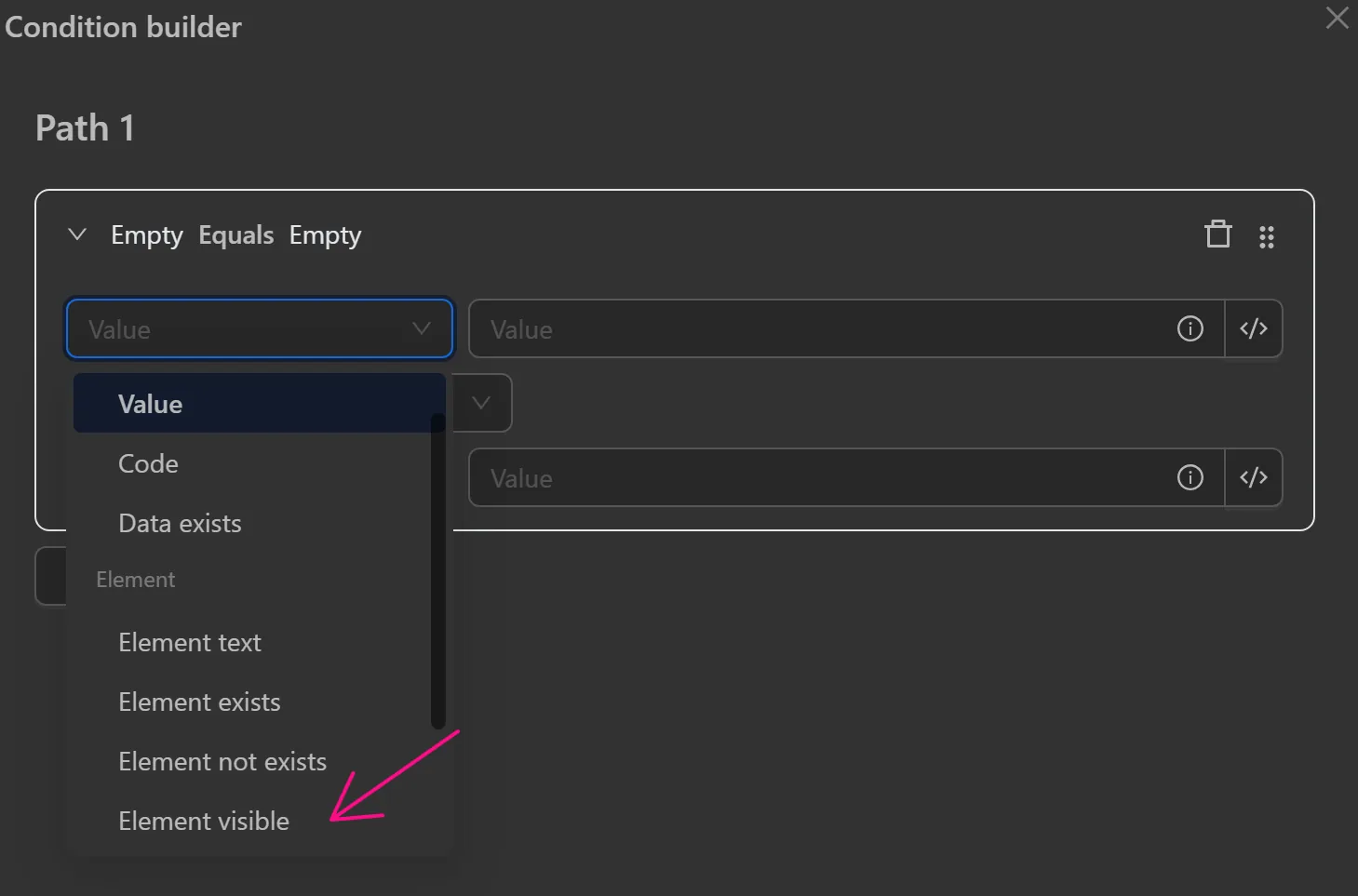

Open the condition table and click on the first Value field. There are many types to choose from depending on the need. Since I want to check if the account input field is visible, I will use the Element visible option.

To check if the field is visible, I need to obtain the selector of the account input field and enter it into the remaining field. The node will then look like this

Additionally, I can configure the retry time for the Conditions node to check as follows. In the image, I will retry 10 more times with each attempt lasting 1 second, making the total execution time of this node 4 seconds if no condition is met

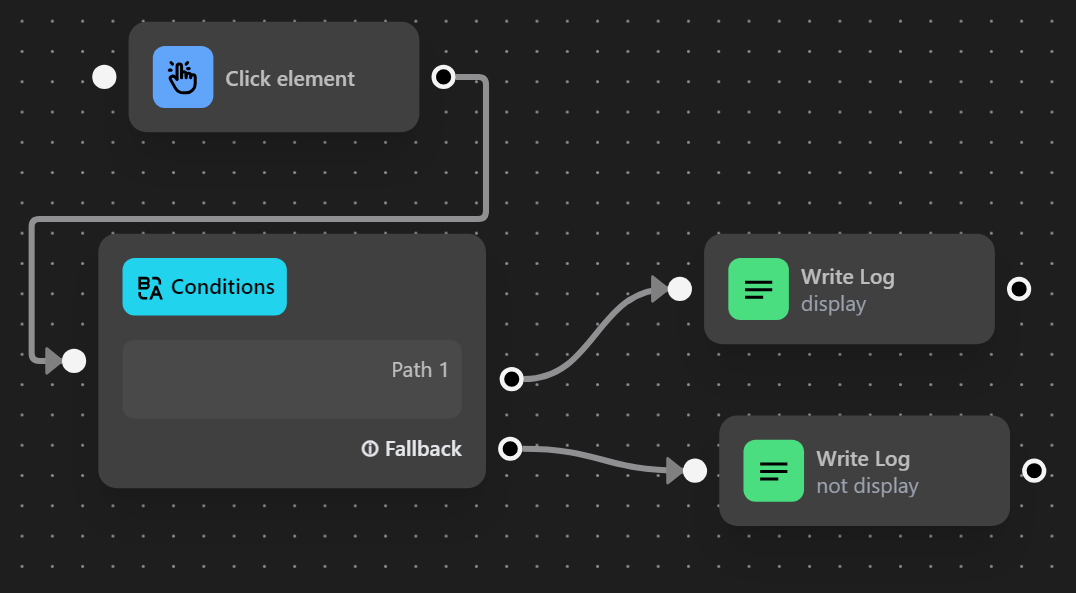

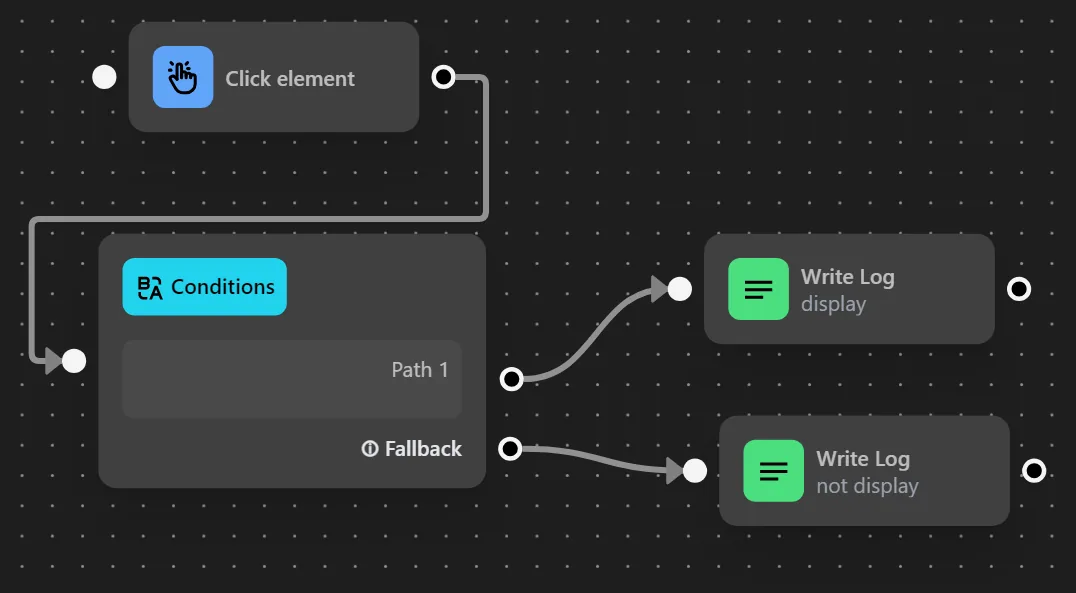

To see more clearly whether the condition is met, I will create two Write Log nodes to connect when the condition is true or false. The node cluster will then look like this

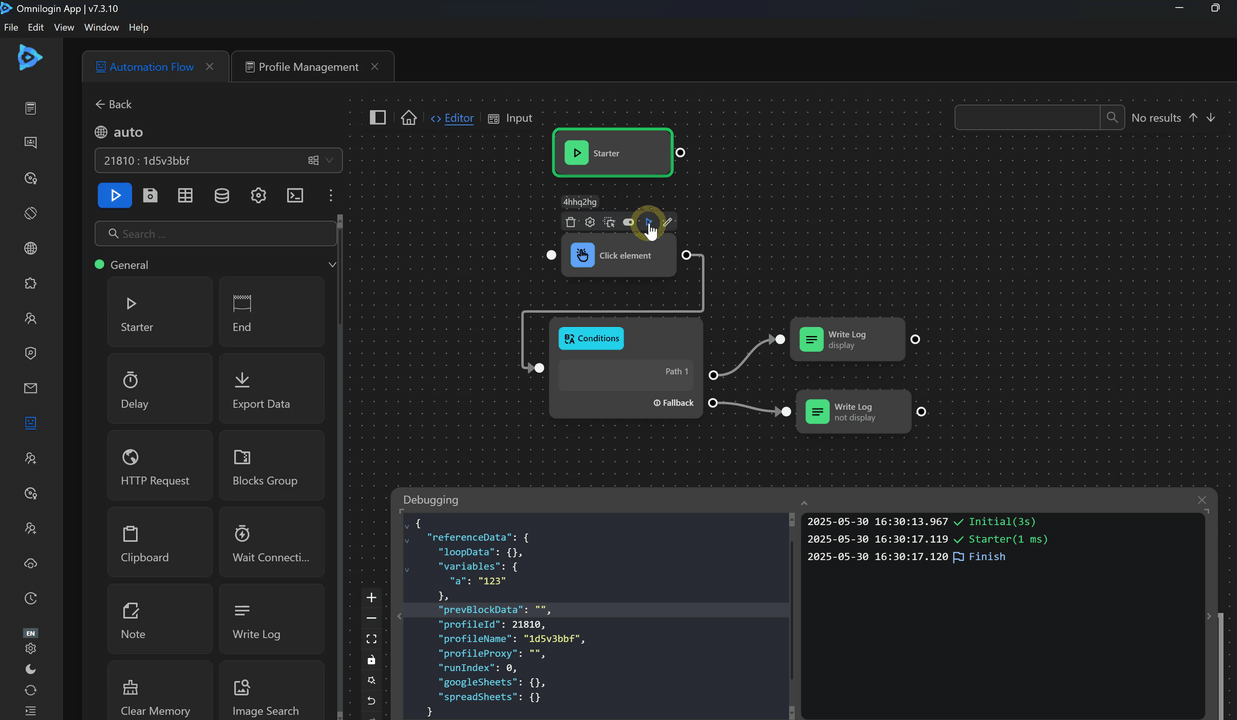

When running, I will see that the account input page has appeared -> the condition is true, and the process will proceed to the Write Log node with the description displayed

Case Requiring Multiple Correct Conditions Branches

Example

Here, I will use the Conditions node in the Yahoo account login process

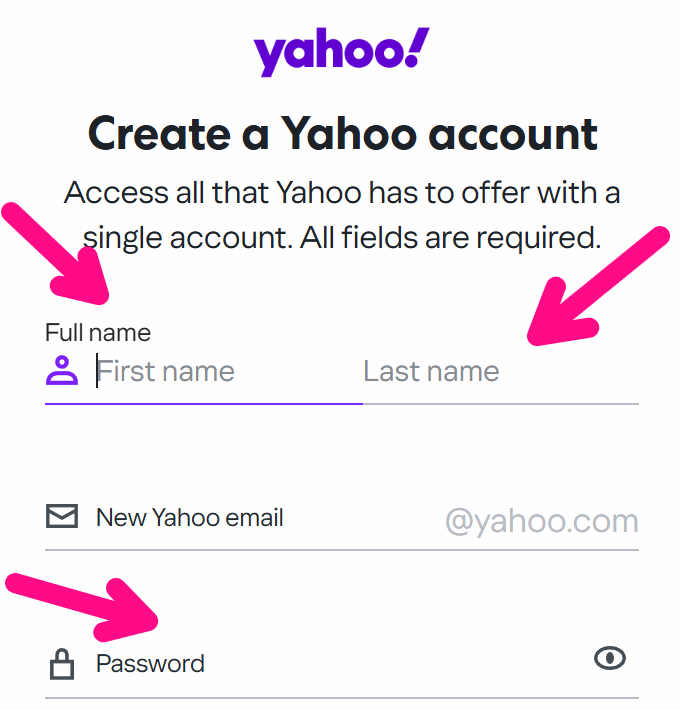

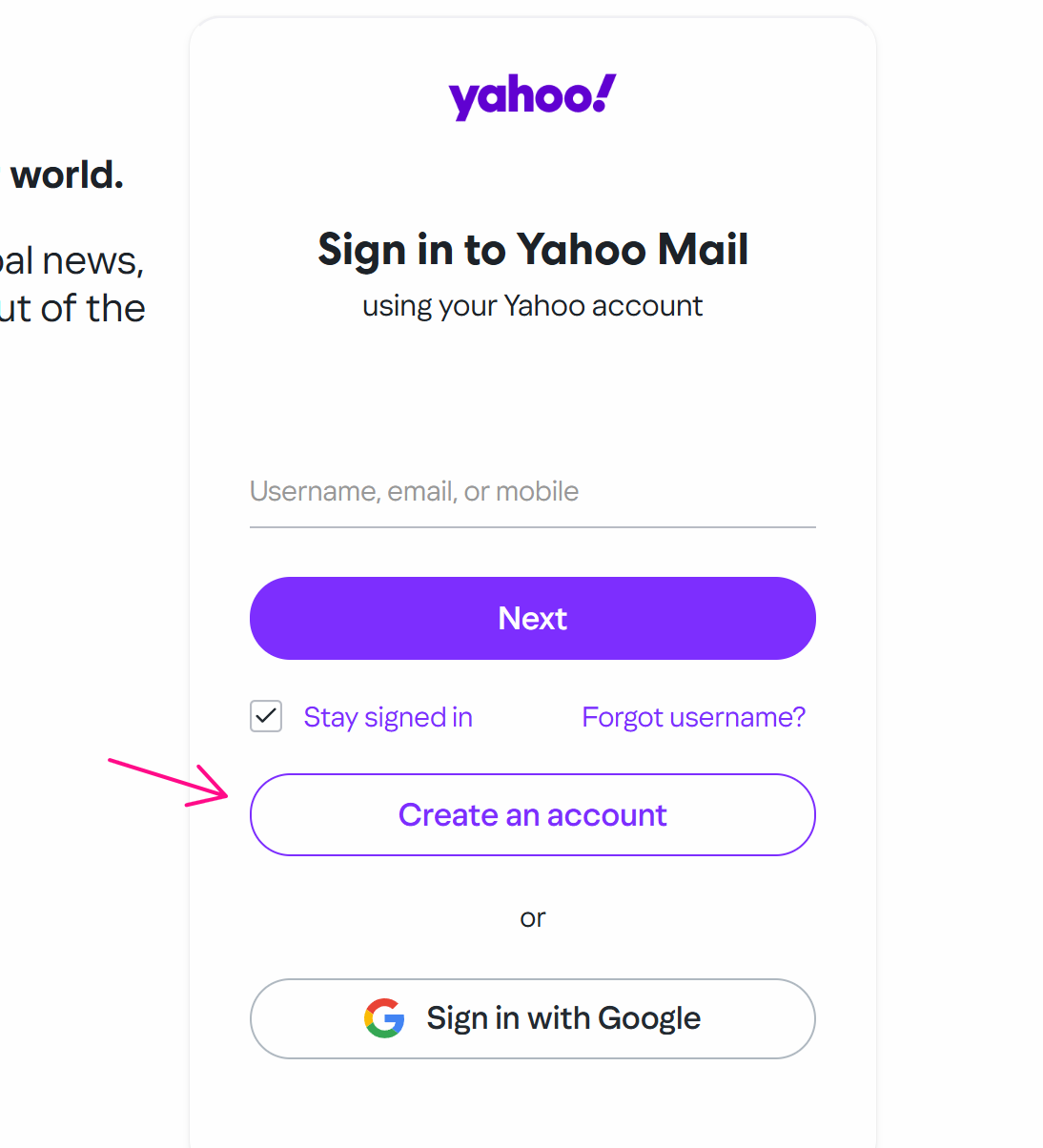

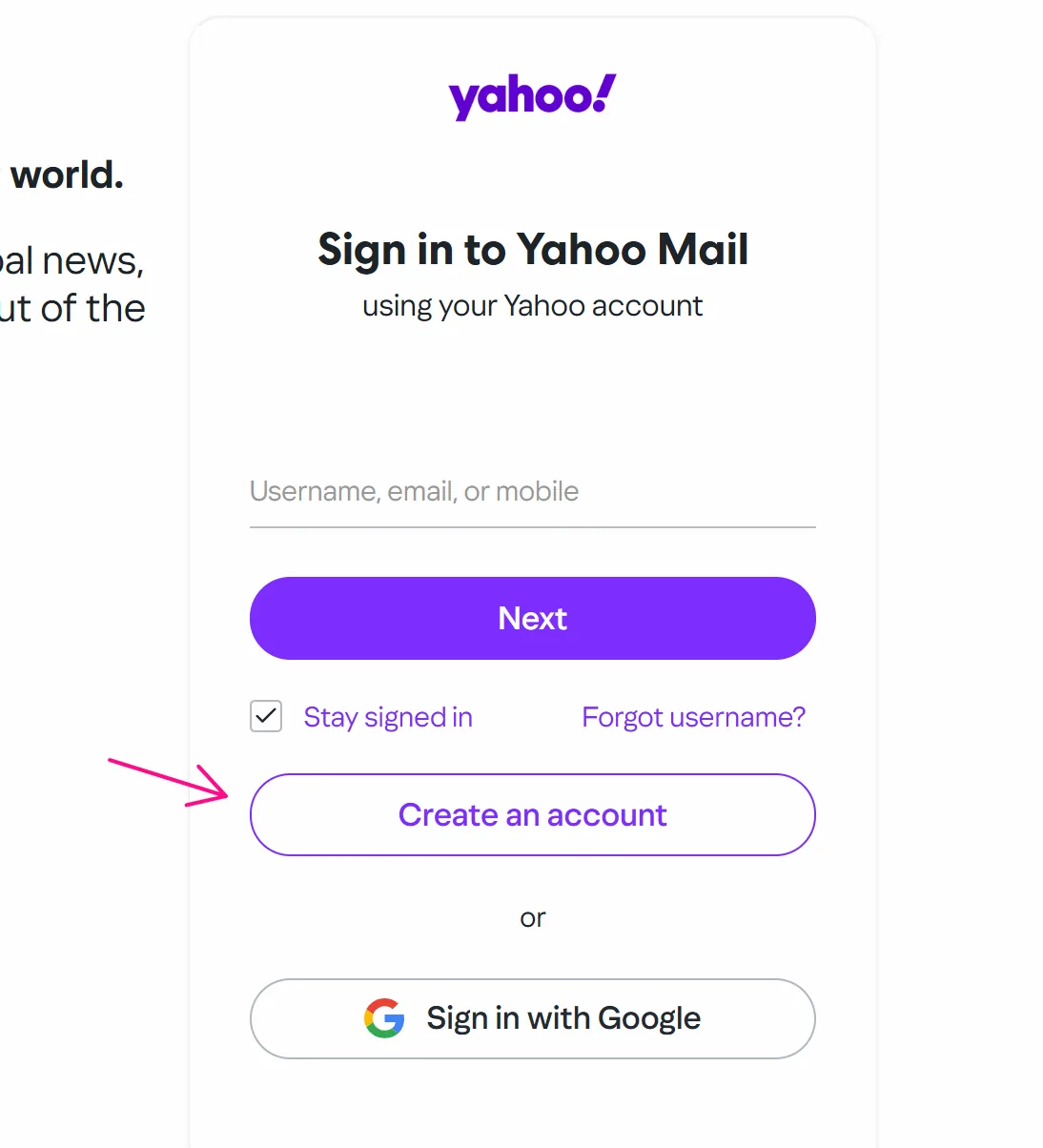

In this process, after clicking the Create an account button, the page for entering first name, last name, password, and address for Yahoo will appear. Normally, the page loads quite quickly, but in some cases with a slow network, I will add the Conditions node after the Click element node to check if the account information input fields have appeared

I will configure the Conditions node as follows

First, add a condition and configure it in the condition table.

Since I want to check multiple elements at once to perform the input action, I will use the And condition type

Open the condition table and click on the first Value field. There are many types to choose from depending on the need. Since I want to check if the first name, last name, and password fields are visible, I will use the Element visible option.

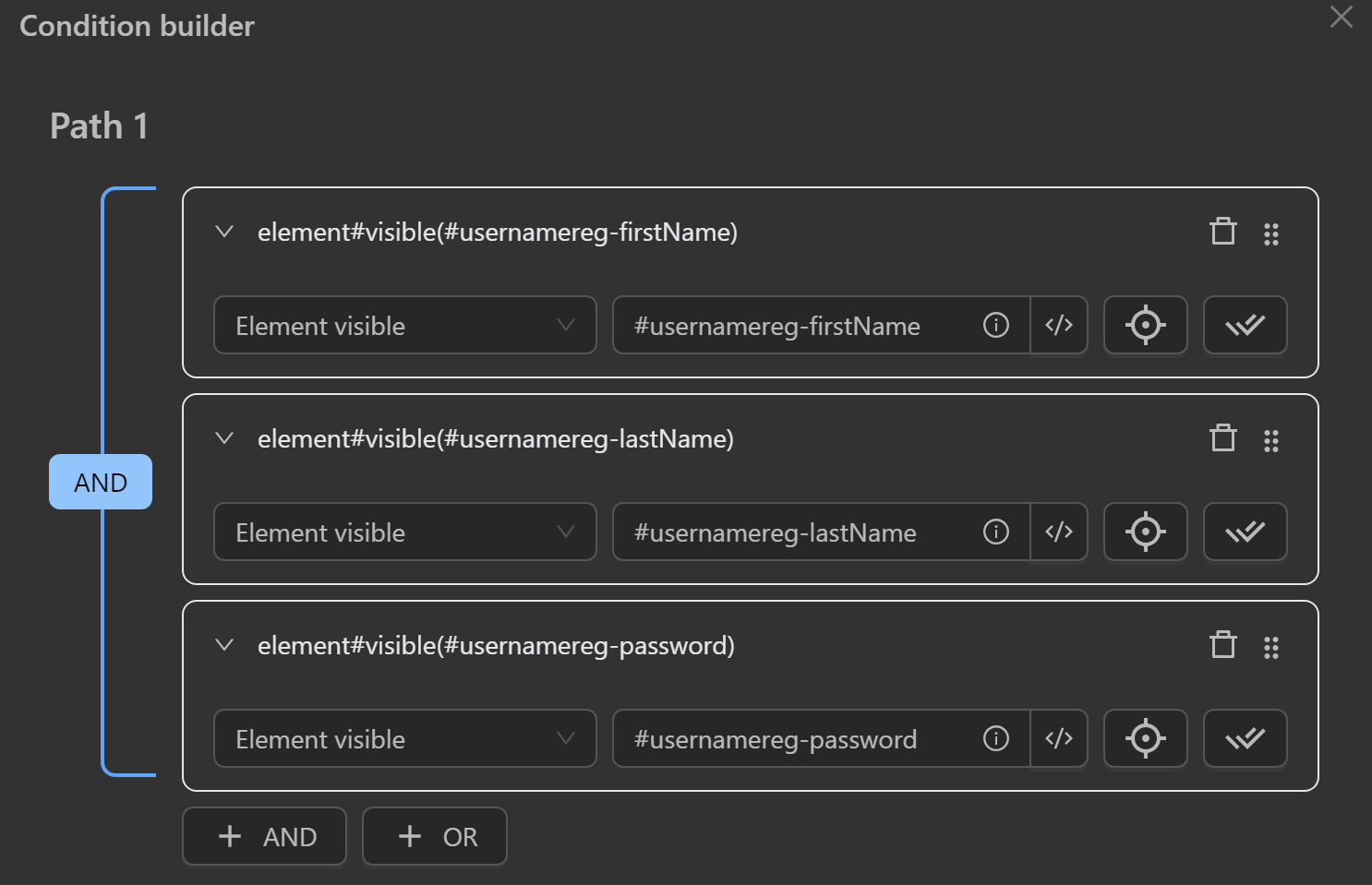

To check if these fields are visible on the screen, I need to obtain the selectors for the first name, last name, and password input fields.

Additionally, I can configure the retry time for the Conditions node to check as follows. In the image, I will retry 3 more times with each attempt lasting 1 second, making the total execution time of this node 4 seconds if no condition is met

To see more clearly whether the condition is met, I will create two Write Log nodes to connect when the condition is true or false. The node cluster will then look like this

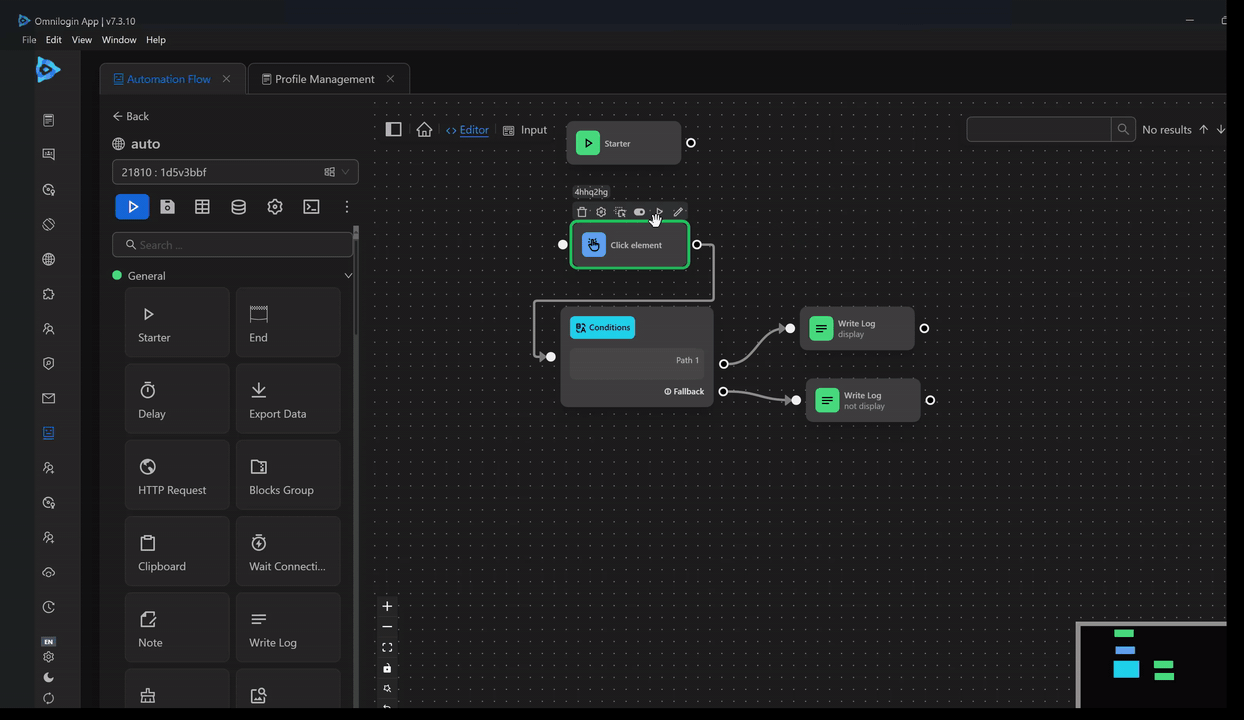

When running, I will see that the account input page has appeared -> the condition is true, and the process will proceed to the Write Log node with the description displayed

Note

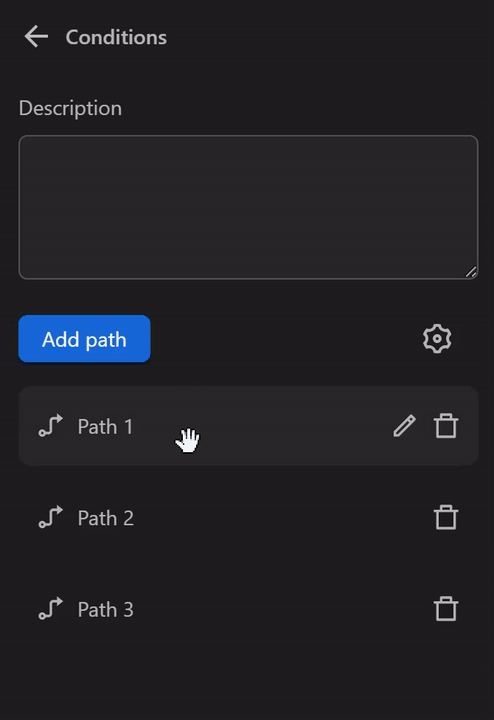

I can edit the order of conditions as follows
